Compression fittings offer a dependable method to join copper pipes, eliminating the need for welded joints or soldering. These connectors are widely used by trade professionals and DIY users because they make pipe connections faster and easier. The assembly is made up of the fitting body, a compression ring ferrule, and a compression nut. As the nut is tightened, it presses the ferrule and builds a tight seal around the tube.

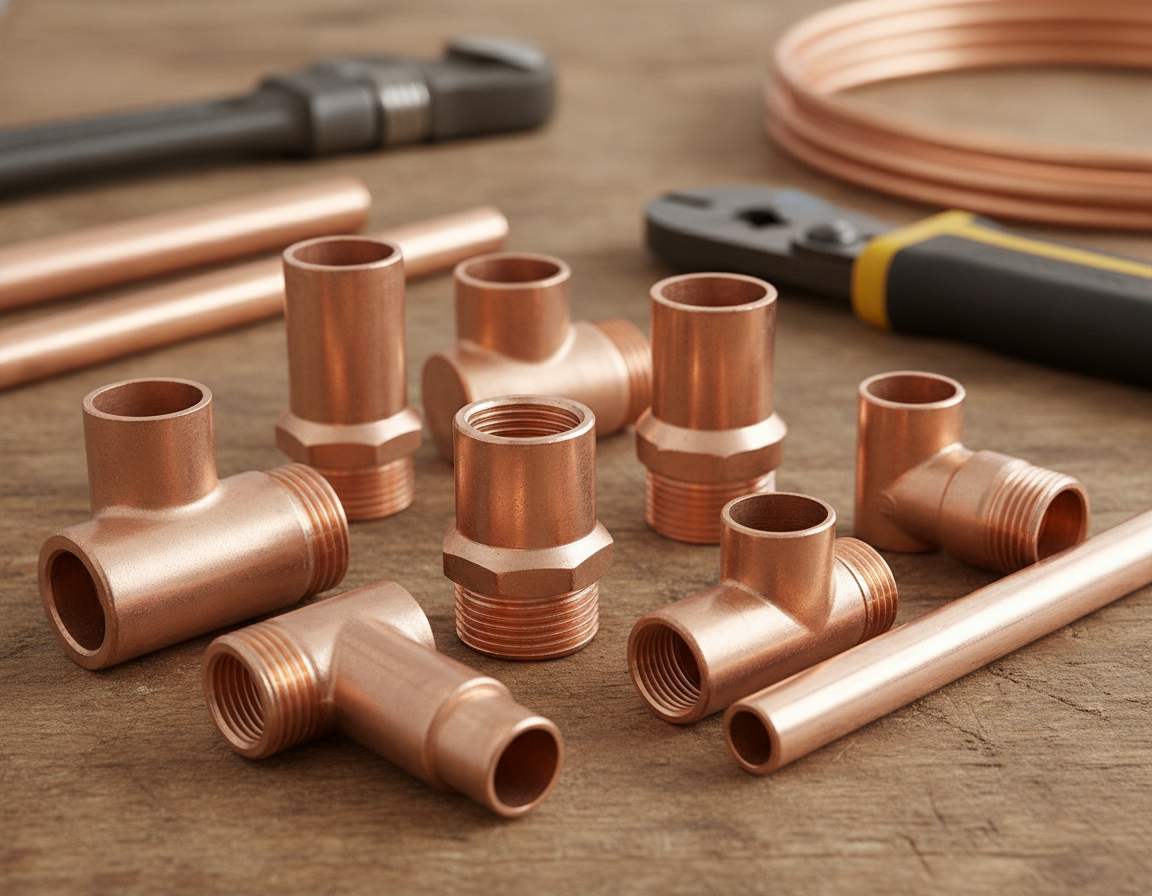

1 4 Tee
To help achieve a successful installation, follow a few essential best practices. Start by creating square cuts and deburring the tube end. Then inspect the tube end for scratches, distortion, or other damage. Then, hand-tighten the nut before using a wrench. Use two wrenches so the fitting body is held steady and the pipe does not twist. Remember, stay away from overtightening and never reuse a compressed ferrule to support a leak-free joint.
Compression fittings are commonly preferred over soldering for many applications. They avoid open flame work and may be reusable in certain low-stress situations. Their ease of installation in tight spaces is a major advantage. However, they are bulkier than soldered joints and may not be ideal in high-stress locations or hidden areas that are hard to inspect. It is essential to use matching components and follow the manufacturer’s torque or turn specifications for reliable performance.
- Compression fittings couple copper tubing without solder or flame.
- Main parts: fitting body, ferrule olive, and compression nut.
- For dependable seals, make straight cuts and deburr the tube end.
- Use two wrenches and avoid overtightening to prevent leaks.
- Choose brass or compatible materials and follow manufacturer guidance.
Compression Fittings Explained
Compression fittings couple tubing without solder or heat. They rely on a simple connection. This connection compresses a ring against the pipe to form a seal. They are especially useful in confined areas and field repairs where a fast, dependable connection is needed.
Main Components
The main pieces are the body, the olive, and the compression nut. The fitting body contains both the seating area and the threads. The ferrule, also called an olive, is positioned between the compression nut and the pipe. When the compression nut threads onto the body, it forces the ferrule into position.
How The Seal Works
The seal is made through radial compression. As the compression nut turns, the ferrule moves axially into the tapered bore of the body. This motion forces the ferrule to deform slightly and press against the tubing outer diameter.
This creates a line-contact seal that secures the tubing and helps resist leakage. Ferrule design and material directly affect the seal’s performance under pressure and temperature changes.
Common Names And Variations Across Industries
Different trades use varied terms for the same idea. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. Instrumentation suppliers may list compression joints and compression fittings plumbing next to flare fittings, push-fit connectors, and other mechanical options.
| Term | Typical Use | Key Feature |
|---|---|---|
| Compression fitting nut | Domestic plumbing and gas runs | Threads tighten to drive the ferrule |
| Olive | HVAC, refrigeration, instrumentation | Forms the tube-gripping seal |
| Compression joint | Quick field connections | Flame-free assembly with limited reusability |
| Compression joining couplings | Pipe extensions and joins | Two-ended compression seal |
| Compression plumbing fittings | Home and commercial water systems | Many materials, shapes, and sizes |
Compression Fittings For Copper Tubing
Material selection is critical to compression-joint performance. It influences performance, durability, and the risk of corrosion. Copper fittings are often a good match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings also deliver helpful ductility. That ductility helps the fitting form a reliable seal without unnecessarily damaging the tube.
Stainless steel compression fittings are ideal for high-pressure or high-temperature systems. They also provide resistance to many aggressive fluids. Plastic compression fittings are suitable for low-pressure domestic water lines. They avoid metal-to-metal contact and can reduce dissimilar-metal problems.
Materials should be matched to the job, pressure rating, temperature, and fluid type. In refrigeration and many plumbing uses, copper or brass parts are often preferred. They minimize mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can quickly accelerate deterioration where the metals meet. This cuts down the service life. When mixed metals cannot be avoided, use dielectric unions, insulating sleeves, or compatible transition materials to reduce electrical contact.
Before assembly, inspect the tube surface, finish, roundness, and wall rigidity. A proper surface quality supports ferrules bite evenly and form a lasting seal. Always use the manufacturer’s compatibility guidance before mixing materials. This limits leaks and improve the life of the joint in the field.
Copper Tubing Compression Tee Sizes And Types
Choosing the right compression tee is critical, influenced by flow needs, space constraints, and tubing sizes. Compression tees are commonly used in plumbing, refrigeration, and instrumentation systems. Ensuring a proper fit between ferrule geometry and body taper is critical to preventing leaks.
Variants For Branching And Tight Spaces
Straight tees allow full flow through three aligned ports. Branch tees send flow into a side line without sharp turns. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They accept common sizes like the Compression Tee 1/2 for residential lines.
Common Size Labels And Cross-Fit Options
Installers often identify parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. For small-diameter tube runs, the 1 4 Tee is often used. Larger branches often call for 1/2 Inch Compression Fitting or 1/2 OD Compression Fitting options. Cross-fit options such as 1/2 X3/8 and 3/8 X 1/2 Compression Fitting make it possible to mix sizes when required.
Combination Tees And Adapters
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter changes a 1/2 line to a 3/8 branch. The 1 2 To 1 4 Compression Fitting provides a compact step-down for sensors or instrumentation taps.
Brass Tee And T-Joint Options
Brass is often selected for copper tubing because it offers corrosion resistance and compatible thermal expansion. Look for T Brass Fitting options for long-lasting joints. The 1/2 Brass Tee and 1/2 Tee Brass are frequent for mains and branches. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Fitting Style | Common Use | Common Labels | Material Guidance |
|---|---|---|---|
| Straight Tee | Main run with branch inline | Compression Tee 1/2 or 1 4 Tee | Brass is commonly preferred with copper tube |
| Branch Tee | Side branch off the main line | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Low-Clearance Tee | Small spaces where standard tees will not fit | Compression Tee 1/2 and 1/2 Inch Compression Fitting | Compact body with the same compression sealing action |
| Combination Tee | Branch reductions and instrument taps | 1/2 X3/8, 1/2 X 1/2 X 3/8 Tee, or 3/8 X 1/2 Compression Fitting | Adapter options include 1 2 To 1 4 Compression Fitting |
| Brass Tee Joint | Corrosion-resistant copper systems | T Brass Fitting, 1/2 Brass Tee | Matches copper; check pitch and taper |
When To Use Compression Fittings Vs Soldering Or Other Methods
Choosing the right joint depends on the job’s conditions and the fitting’s capabilities. Compression fittings are useful for tight spaces and areas near flammable materials, as they don’t require flame. Soldering is often better when a permanent, low-profile, visible installation is desired.
Advantages For Quick Installs And Confined Work
No-flame fittings are useful for emergency repairs and retrofitting, as they eliminate the need for hot work permits or torches. They only require basic hand tools, making them a go-to for fast fixes. Reusing these fittings is feasible in systems with low stress, which is beneficial for testing or replacing sections.
Profile Limits And Durability Concerns
Compression fittings add bulk compared to soldered seams. Ferrules can make it hard to remove fittings, limiting their reusability. In systems with vibration or pulsation, compression joints may loosen over time, so soldered or brazed connections may be better.
Choosing The Right Method By Application
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. For visible runs where appearance is important, soldering is the better choice.
In some gas-line work, compression fittings may be used for short runs. Always verify local code requirements and use approved materials. Inspect joints regularly so safety is maintained.
In HVAC and refrigeration, choose copper fittings designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings such as a Compression Tee Fitting or T Compression Fitting can suit service taps, testing points, and temporary connections.
For instrumentation, choose fittings that can deliver leak-tight performance in high-pressure or high-purity lines. Stainless-steel compression fittings can perform very well, but pressure and media ratings must be confirmed before use.
| Comparison Factor | Compression Fitting | Solder/Braze |
|---|---|---|
| Tooling | Simple hand tools | Torch, flux, solder or filler |
| Installation Speed | Fast for repairs | Slower due to heating and cooling |
| Installed Profile | Larger visible profile | Low profile, neat runs |
| Serviceability | Possible but limited; reuse compression fittings varies | Not reusable; permanent bond |
| Dynamic Stress Performance | Moderate, with loosening possible | Generally stronger under vibration |
| Common uses | Plumbing repairs, gas lines, HVAC service tees | Permanent pipe runs and neat visible work |
Choose the joint style according to pressure, temperature, service access, and material compatibility. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are useful for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
Effective installation starts with thorough preparation and a well-ordered sequence. Every step matters because poor preparation can cause leaks or damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Preparing copper tubing correctly is essential for a good seal. Cut the tube squarely with a tubing cutter, then remove burrs with a reamer or deburring tool. Inspect the tube end for any nicks or deformations. Before assembly, clean the tube and inspect the fitting body, nut, and ferrule for damage.
Begin by sliding the nut onto the pipe, ensuring the threads face the end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut, then use a wrench to align the parts before applying final torque.
Correct tightening is essential to a secure seal. Use two wrenches to stabilize the fitting body while tightening the nut. Follow the manufacturer’s turn-based instructions instead of relying only on torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
Replacement ferrules are often needed after disassembly. Once an olive or ferrule has been compressed, it should not be reused. If the ferrule is stuck, remove it with a ferrule puller or carefully cut it off without damaging the tube or fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing does not need inserts. After reassembly, slowly open the supply and check for leaks. If needed, tighten in small measured increments. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Ferrule Design Details That Affect Compression Performance
The choice of ferrule strongly affects a compression joint’s performance under pressure and over time. Whether opting for a single-piece or two-piece ferrule, each has its advantages and considerations. Ferrule design must match the tubing material, tube size, and fitting body geometry to create a secure, lasting seal.
Ferrule shapes and materials
Ferrules are most often made from brass or stainless steel. For chemical resistance, high temperature, or specialty service, graphite or specialty alloy ferrules may be used. A single-piece ferrule is more straightforward to install and works well with softer copper tubing. On the other hand, a two-piece ferrule includes a rear ferrule, preventing rotation and galling, which is essential for stainless systems.
Asymmetrical and symmetrical ferrule choice
An asymmetrical ferrule is installed in a specific orientation, ensuring consistent performance. It is commonly preferred where reliability requirements are high. A symmetrical ferrule can usually be installed either way, making assembly faster. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Seal geometry: line-contact versus surface-contact seals
The design of the ferrule controls whether it uses a line contact or surface contact seal. Line-contact seals often resist creep and vibration better. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tubing considerations and material behavior
Metal tubing must have smooth walls and precise cuts to support proper ferrule seating. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE can creep or cold-flow under compression, which may reduce seal integrity over time.
Soft tubing and PTFE cold-flow mitigations
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules may help distribute load more effectively. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Troubleshooting Compression Fittings And Avoiding Common Mistakes
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To prevent tubing damage, hold the fitting body with one wrench and tighten the nut with a second wrench.
Problems from overtightening can cause pipe deformation, crushed ferrules, and persistent leaks. Over-tightening can damage the copper tubing or flatten the ferrule, leading to a poor seal. If you notice flattened tubing or a gouged ferrule, it is best to cut back the tubing and replace it with a new ferrule and nut.
Under-tightening can leave a small gap that allows slow seepage. For minor weeps, apply small, incremental turns with a wrench until the leak stops. Use gradual tightening to avoid over-compressing the ferrule while still achieving a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Make sure the tubing enters the fitting body straight and seats fully. A misaligned ferrule can become stuck, making removal difficult. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks involves inspecting the ferrule seating and part condition. Replace any damaged ferrule, nut, or fitting body. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit sealing faces and cause repeat leaks. Galling can lock nuts and bodies, making them difficult to remove. For stuck nuts, apply penetrating oil and allow time for it to soak in. If threads or faces are damaged, replace the affected components.
Choosing the right materials can reduce corrosion and galling. Do not pair carbon steel directly with copper if galvanic reaction is a concern. Choose ferrules and fittings suited to the system’s chemistry, pressure, and temperature. In cleanroom or high-purity service, volatile cleaning agents may increase galling risk, so use anti-galling ferrules and approved compatible lubricants where permitted.
Stuck nut recovery usually starts with penetrating oil and careful patience. If the nut will not move, cutting off and replacing the nut and ferrule may be quicker than forcing it. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, consider alternatives. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Issue | Common Cause | First Action | Permanent Solution |
|---|---|---|---|
| Slow leak | Insufficient tightening or ferrule misalignment | Incremental tightening with two wrenches | Re-cut tubing and rebuild with new compression parts |
| Ongoing leak despite tightening | Crushed ferrule or distorted tubing | Cut back tubing, fit new ferrule and nut | Follow turn-count guidance and avoid excess force |
| Seized ferrule or nut | Compression seat or galling | Use penetrating oil, ferrule puller, or careful cutting | Install new parts and select anti-galling materials |
| Corroded compression joint | Wrong material choice or chemical attack | Install new compatible fitting parts | Select compatible metals; follow code for gas lines |
| Vibration-related joint failure | Movement or vibration loosens the joint | Clamp, secure, and inspect the affected run | Choose soldered, welded, crimped, or flared alternatives |
Copper Tubing Compression Fittings Summary
Copper Tubing Compression Fittings conclusion: compression fittings offer a flexible, flame-free solution for copper tubing in various fields. They work well when materials are matched and installation techniques are followed correctly. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
Installation Parts Supply guidance emphasizes replacing ferrules during reassembly and tightening fittings according to manufacturer specifications. That practice helps maintain reliable sealing.
Choose compression fittings for fast repairs, confined spaces, and removable joints. They do have limits when compared with soldered joints. Long-term performance depends on ferrule design, tube quality, material compatibility, and correct assembly order.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary stresses the importance of routine checks and careful installation. Make sure cuts are square, clean, and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For matching parts and compatible ferrules, check with qualified suppliers. Look for suppliers that carry 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options suited to the project.
